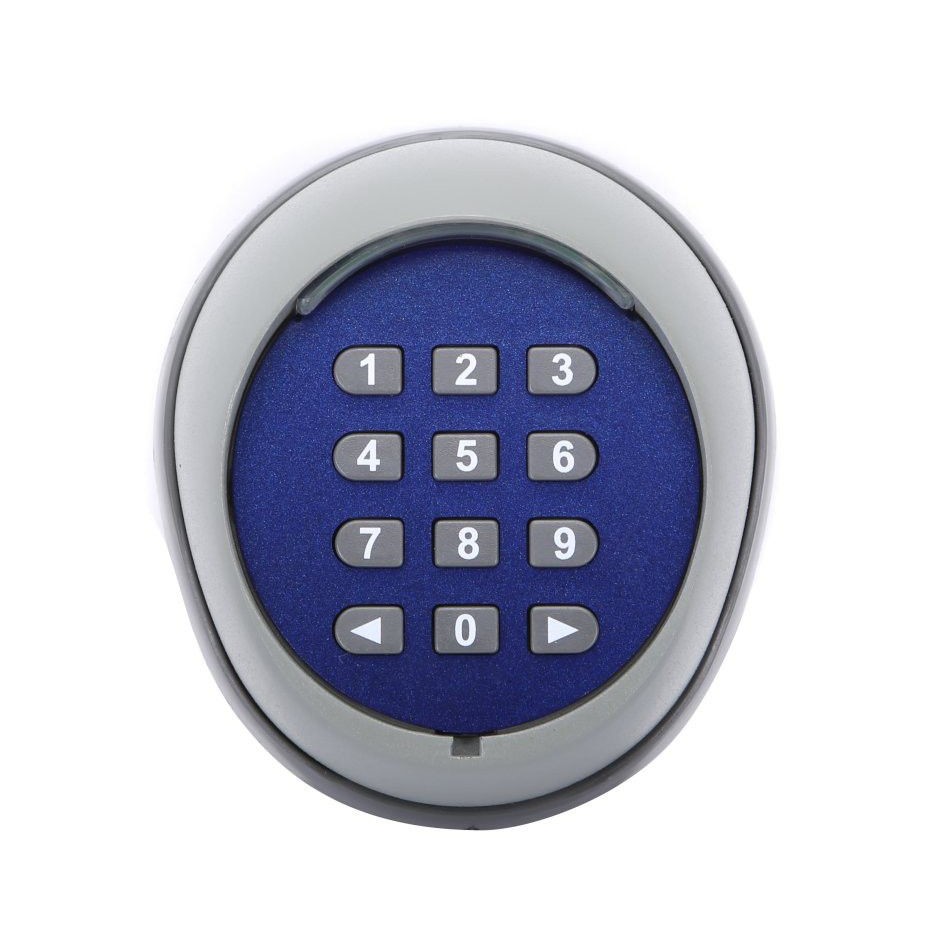

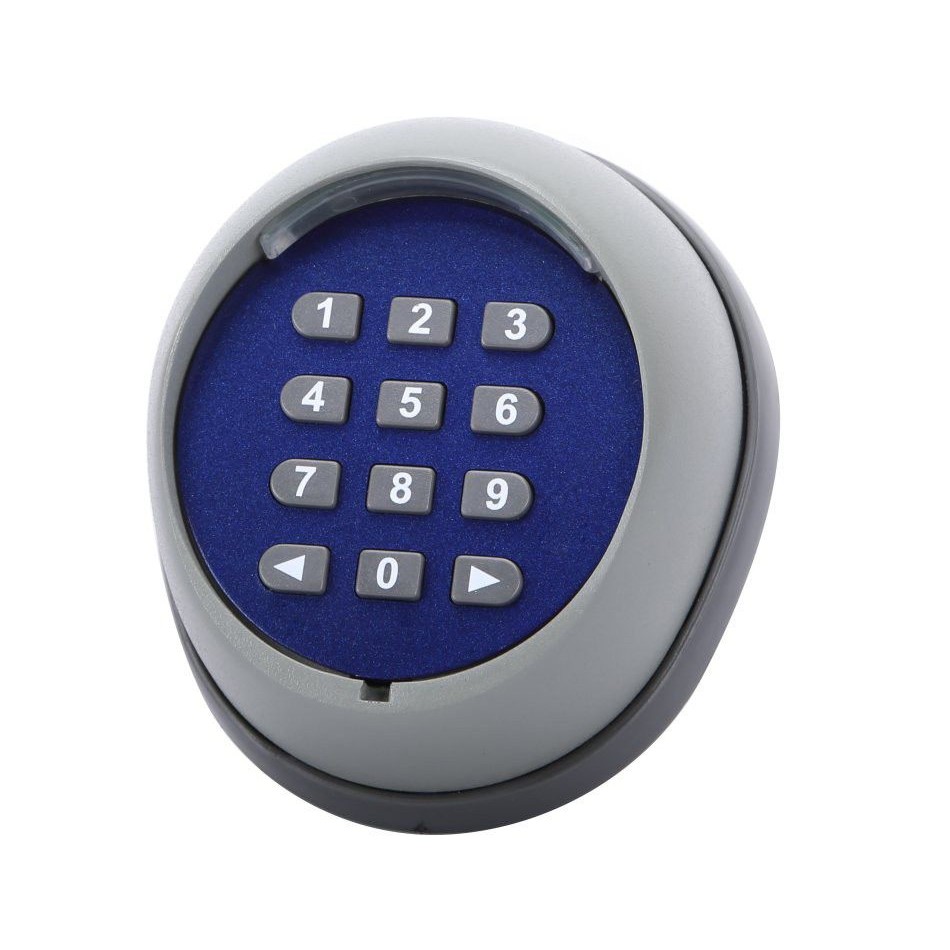

Wireless Keypad for Sliding Gate Motor

Using a wireless keypad can control the gate opening by entering a password, and it is easy to program and you can reset the password as needed.

The battery-operated wireless keypad is designed to be mounted externally. It is IP67 weather resistant, does not require any electrical wiring and can operate up to 2 devices using a PIN. It is handy for those that like to exercise without the need to carry a remote control, to give people temporary access or for those that have children likely to damage or lose a remote control.

Product Specifications
– Wireless keypad for Sliding gate motor
– Compatible with Zooltro Sliding Gate Motor
– Rolling code: wireless
– Frequency: 433.92 MHz
– Channel: 2 channels
– Battery: 2 x CR 2032 3V

Product features
– Includes a red light for illumination at night.
– Ideal for either indoor or outdoor use in areas that require no cables.
– Easy to learn and program your customized security codes.
– This is a dual channel transmitter that are activated only after having entered a Suitable combination.
– The units are designed for installation in indoor or outdoor locations.
– The estimated transmission range is 170 m in open space and 35 m indoors.
– The units are designed to ensure battery life equivalent to an estimated 2 years of operation
– This wireless keypad allows to open more than two different gate openers on more than two separate gates if needed
– Compatible with all Zooltro gate openers, perfect for big family with over 3 family members
– Can be mounted on any surface and can be operated with two independent codes of 0-9 digits, while the master code can be used to enter programming mode.
– Gives audio feedback after pressing buttons which indicates whether the access was granted.
– Emits additional two tones (after normal tones) to indicate low battery.
– The rolling code ensures security and is equipped with dual channels for multi-operating functions,

USING THE KEYPAD WITHOUT SETTING THE CODE
The keypad has the default code programmed as follows: for the left arrow < 11; for the right arrow > 22
– It is possible to use the keypad without setting the code. In order to do this, you need to enter the programming mode by pressing and holding zero. At the same time press the arrow (left or right) that you wish to operate without code.
– Now enter the default code and then press the chosen arrow 3 times
– A long beep will then follow to confirm that the keypad has been set to work without a code
Example: whilst holding 0, press < when you hear a long beep; press 11 <<< , you’ll then hear another long beep USING THE KEYPAD WITH A CODE The keypad has the default code programmed as follows: for the left arrow < 11; for the right arrow > 22
– In order to change the code press and hold zero. At the same time press the arrow you wish to change the code for
– A long beep will confirm that you have entered the programming mode
– After a long beep enter the old code and press the arrow again
– Enter a new code containing between 1-9 digits and press the arrow
– For the second time repeat the new code and press the arrow
– A long beep will confirm that the code has been successfully changed
Example: change existing code to 2580; while holding 0, press < then you’ll hear a long beep; press 11 then < , then enter 2580, < , re-enter 2580 , < , you will hear a long beep CHANGING FROM HAVING NO CODE TO USING A CODE ON THE KEYPAD - Press and hold zero and at the same time press the arrow that has got no code programmed - Then press the same arrow again - Now enter the new code you wish to program (from 1 to 9 digits) - Press the arrow again - Repeat the code once more and press the arrow - A long beep will confirm that the code has been programmed. Example: change from no code to code 2580; press and hold 0, press What's in the box 1 x Wireless Keypad for Gate Motor
